Display table of contents Task planning in the Schedule > Define dependencies between Tasks > Define dependencies between Tasks - Information Window

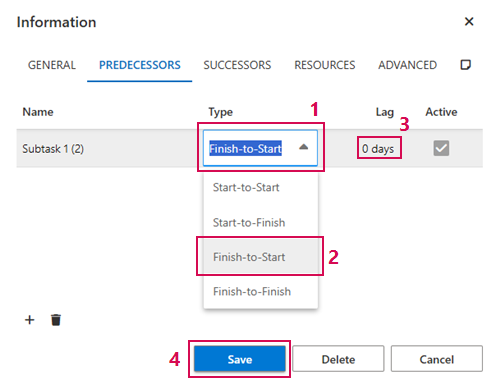

In the Task information window, you can change the dependency types and insert a lag between two tasks.

There are 2 ways to open the Task information window.

➢In the table, click on the task you want to edit.

➢Click on Edit. ▶ The Task information window opens.

Or:

➢Double-click on the task bar in the Gantt chart. ▶ The Task information window opens.

➢Click on the Predecessor or Successor tab - depending on the relationship you want to edit.

➢Click on the Type field. (1) ▶ The drop-down menu opens.

➢Click on the desired dependency. (2)

➢Click on the Lag field. (3)

➢Enter the number of days.

➢Click on Save. (4)

▶ The dependency between two tasks is changed and a lag is inserted.

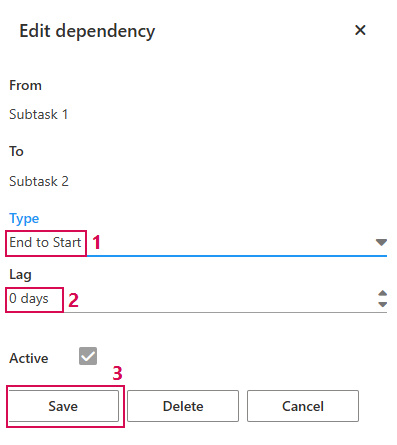

Dependencies between tasks can also be changed via the Edit dependency window.

➢Double-click on the dependency arrow in the Gantt chart. ▶ The Edit dependency window opens.

➢Click on the Type field. (1) ▶ The drop-down menu opens.

➢Click on the desired dependency.

➢Click on the Lag field. (2)

➢Enter the number of days.

➢Click on Save. (3)

▶ The dependency between two tasks is changed and a lag is inserted.
