Display table of contents Task planning in the Schedule > Schedule - Views > Schedule - Buttons

Above the tabular and graphical view of the tasks is a command line with buttons that you can use to customize the view.

▪Add (1): Add a new task.

▪Edit (2): Edit task.

▪Delete (3): Delete task.

▪Undo last action and Redo last undone action. (4) (see Undo and Redo Actions)

▪Outdent task or Indent task (5): Move task to another level.

▪Show all subtasks (6): All subtasks are displayed in the tabular and graphical view.

▪Hide all subtasks (7): All subtasks are hidden. Only the summary tasks and milestones are displayed in the tabular and graphical view.

▪Zoom out and Zoom in (8): Zoom in or zoom out view in Gantt Chart

▪Zoom to fit full Gantt (9): The entire project is displayed in the Gantt chart.

▪Scroll left and Scroll right (10): Jump in the Gantt chart to the start or end of the project.

▪Scroll to selected task (11): Selected task line is displayed.

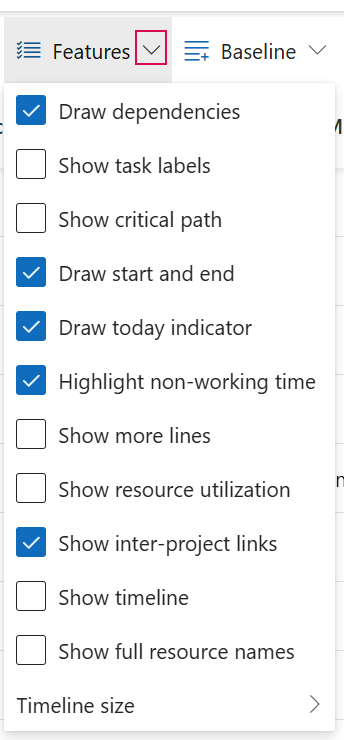

▪Features (12): Drop-down menu with features.

▪Click on the arrow. ▶ A drop-down menu opens.

▪Click on the elements to be displayed in the Schedule tab.

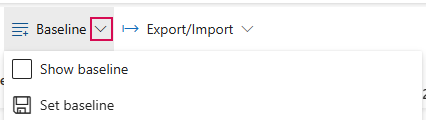

▪Baseline (13): Display baseline or save the current status as a baseline.

▪Click on the arrow. ▶ A drop-down menu opens.

▪Click on Show baseline. ▶The baseline is displayed in the Gantt chart.

Or

▪Click on Baseline. ▶ The current status is saved as a baseline.

▪Export/Import (14): Export project, print as PDF or import from another project.

▪Click on the arrow. ▶ A drop-down menu opens.

▪Select the desired action.

▪Refresh, full screen mode or reset view settings and immediate recalculation of the project. (15)
