User Interface

Project variants are created and opened in the Project Variants sidebar within the original project.

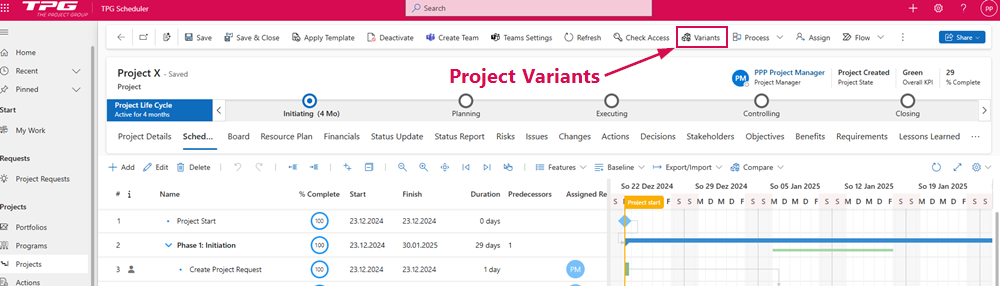

To open the Project Variants sidebar, open the original project and click on Variants in the command bar.

EN-ProjectVariants_1

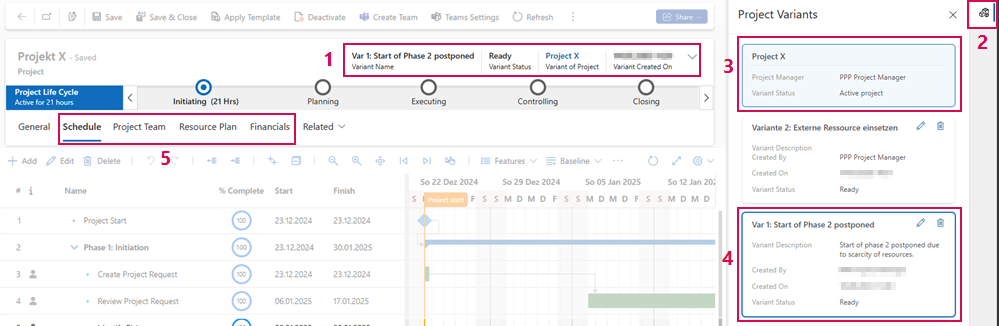

The user interface of the project variant is divided into the following areas:

Information about the currently opened variant and the name of the original project (1)

Show/hide Project Variant sidebar (2)

Original Project (3)

Variant whose project plan is currently open (blue framed) (4)

Tabs with copied data from the original project (5)

EN-VariantsUserInterface_1

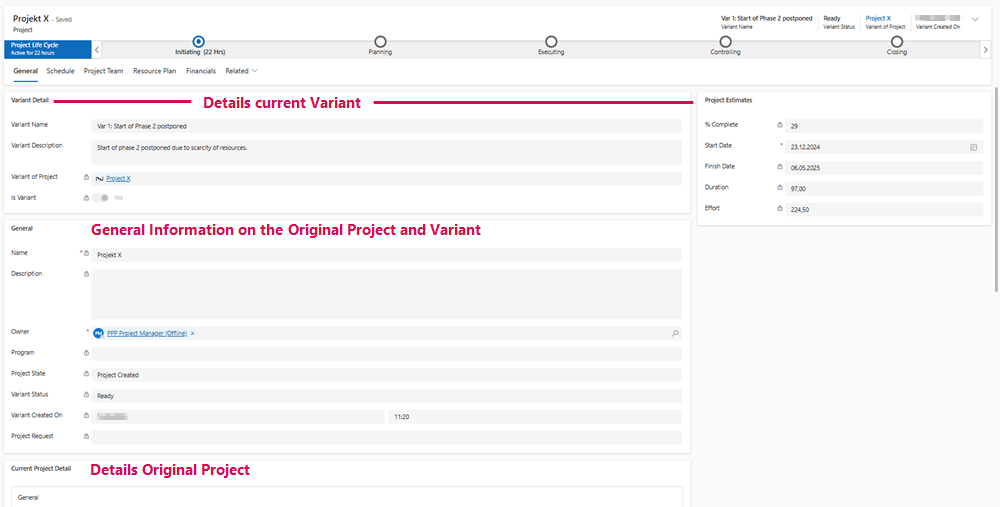

Under General, you will find data and information about the original project and the selected variant:

EN-VariantsUserInterface_2
